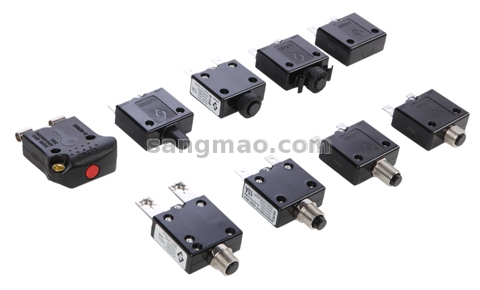

-Single pole thermal circuit breaker in a miniaturised design.
-Protect against overcurrent and short circuit of a broad range of equipment and systems.
-Current rating: 2~50 Ampere.
-VAC & VDC rated protection.
-This series is suitable for diverse applications such as AC & DC motor、Generator、Power Strip、Power Tools、Industrial Equipment、Power Generators、Ups、Common Protect Appliances, etc.
We offer Custom Design & Manufacturing services (OEM/ODM) for all Circuit Breakers product specifications.
SPECIFICATION:
STANDARD RATING: 2 - 50 AMPERE.
INPUT POWER: 50VDC /125VAC / 250VAC.
DIELECTRIC STRENGTH: 1500 VAC / 1 MINUTE.
RATED CONDITIONAL SHORT-CIRCUIT CURRENT :
IEC-60934 "PC. 1 1000A" WITH " FUSE 16 A gL / gG" .
INSULATION RESISTANCE : > 100 MΩ.
RESET: MANUAL PUSH RESET.
APPROVALS:
U L APPROVAL: 3 - 30A 125 / 250 VAC
CSA APPROVAL: 3 - 30A 125 VAC , 5 - 30A 250VAC
VDE APPROVAL: 4 - 30A 250VAC / 50VDC
CCC APPROVAL: 4 - 20A 125 / 250VAC / 50VDC
APPLICATION:
AC & DC MOTOR
GENERATOR
POWER STRIP
COMMON PROTECT
