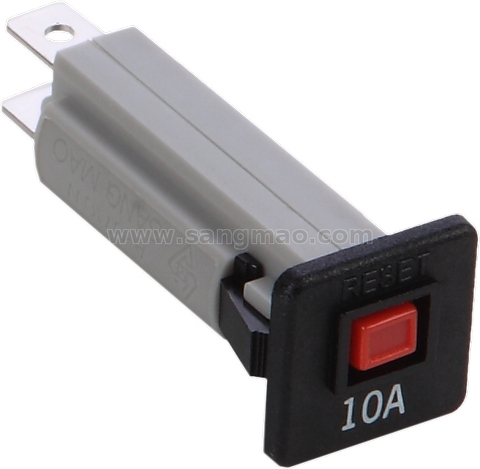

1. Single Pole Thermal Circuit Breaker In a Miniaturised Design.
2. Protect against overcurrent and short circuit of a broad range of equipment and systems.
3. Easy And Quick Reset After Tripping Due To Overcurrent.
4. Quick Connect Terminals.
5. Rohs Compliant.
6. VDE、CSA 、CSA c/us approved.
7. This series is suitable for diverse applications such as Home Appliance、Fuse Replacement、Official Equipment、Common Protect Appliances, etc.
We offer Custom Design & Manufacturing services (OEM/ODM) for all Circuit Breakers product specifications.
SPECIFICATION:
STANDARD RATING: 2 - 20 AMPERE.
INPUT POWER: 32VDC /125VAC / 250VAC.
DIELECTRIC STRENGTH: 1500 VAC / 1 MINUTE.
RATED CONDITIONAL SHORT-CIRCUIT CURRENT :
IEC-934 "PC. 1 1000A" WITH " FUSE 16 A gL / gG" .
INSULATION RESISTANCE : > 100 MΩ.
RESET: MANUAL PUSH RESET.
APPROVALS:
CSA APPROVAL : 3 - 15A 125VAC TC2,OL0,SC:C1,1kA,125VAC
VDE APPROVAL: 4 - 10A 250 VAC
11 - 16A 125 VAC
CSA c/us APPROVAL: 3 - 15A 125 VAC
APPLICATION:
FUSE REPLACEMENT
HOME APPLIANCE
OFFICIAL EQUIPMENT
COMMON PROTECT
