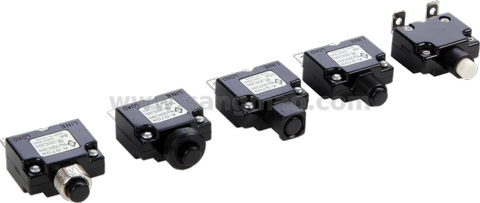

1. Single Pole Thermal Circuit Breaker In a Miniaturised Design.
2. Protect against overcurrent and short circuit of a broad range of equipment and systems.
3. Easy And Quick Reset After Tripping Due To Overcurrent.
4. Available In Various Threaded And Bushings.
5. Quick Connect Terminals.
6. Rohs Compliant.
7. UL、CSA approved.
8. This series is suitable for diverse applications such as Power Strip、Power Tools、Generator、UPS、Common Protect Appliances, etc.
We offer Custom Design & Manufacturing services (OEM/ODM) for all Circuit Breakers product specifications.
SPECIFICATION:
STANDARD RATING: 3 - 20 AMPERE.
INPUT POWER: 24VDC / 125VAC / 250VAC.
DIELECTRIC STRENGTH: 1500 VAC / 1 MINUTE.
RATED CONDITIONAL SHORT-CIRCUIT CURRENT :
IEC-60934 "PC. 1 1000A" WITH " FUSE 16 A gL / gG" .
INSULATION RESISTANCE : > 100 MΩ.
RESET: MANUAL PUSH RESET.
APPROVALS:
U L APPROVAL: 4 - 15A 125 VAC
CSA APPROVAL : 3 - 15A 120VAC, 60Hz TC2, OL0, SC:C1, 1kA, 125VAC
APPLICATION:
GENERATOR
POWER STRIP
COMMON PROTECT
